AccuMac AM1612

Full Immersion PRT

  • Temperature Range: -200°C to 160°C
  • Accuracy: <0.05°C
  • Short-term Stability: <0.02°C
  • Transition Junction and Lead Wires Can Withstand the Full Range of the PRT's
  • Widely Used in Climate/Humidity Chambers and Freezers for Validation/Calibration

The AM1612 full immersion PRT is uniquely designed to provide users an excellent temperature probe that can expose the transition junction and the lead wires to an environment that covers the full PRT temperature range. The seal of the probe prevents the ingress of moisture so that the probe can work in humid conditions or even under full immersion in common heat transfer fluid such as ethanol, silicone oil and mineral oil. It has a wide application in freezers, temperature/humidity chambers and sterilizers.

The AM1612 is small in size with a probe length of 1.97 in (50 mm) and diameter of 0.12 in (3 mm). A unique assembly procedure provides the best balance among the hysteresis effect, mechanical shock and thermal shock performance.  Each probe comes standard with an NIST-traceable certificate of calibration.

General Specifications
 AM1612-2AM1612-1
Temperature Range-200°C to 160°C-40°C to 160°C
Nominal Resistance at 0°C100 Ω
Temperature Coefficient0.00385 Ω/Ω/°C
Accuracy

 		±0.072°C at -200°C
±0.05°C at -40°C±0.05°C at -40°C
±0.05°C at 0°C±0.05°C at 0°C
±0.05°C at 160°C±0.05°C at 160°C
Long Term Drift at 0.01°C*<0.04°C at TPW after 100 hours at 160°C
Short Term Stability<0.02°C
Thermal Shock<0.02°C after 10 thermal cycles from minimum to maximum temperatures
Hysteresis≤0.01°C
Self-Heating75 mW/°C
Response Time**4 seconds
Measurement Current1 mA
Sensor Length1.18 in (30 mm)0.59 in (15 mm)
Sensor Location0.12 in (3 mm) from tip
Insulation Resistance>1000 MΩ at room temperature
Sheath MaterialStainless Steel
Sheath Dimensions0.12 in (3 mm) (OD) x 1.97 in (50 mm) (L)0.12 in (3 mm) (OD) x 0.98 in (25 mm) (L)
External LeadsAM1612-2 = 8.20 feet (2.5 meters)AM1612-1 = 2.50 feet (0.8 meters)
CalibrationNIST-traceable calibration with data***
Lead CompositionEnameled copper wire protected by high temperature heat shrink tubing, 4 leads
* Long-term drift rate is for reference only. It could be affected by such facts as handling, application, and maintenance, etc.
** for 63% response to step change in water moving at 1 meter per second
*** For 17025 accredited calibration, please contact Additel
Optional Accessories
ModelQuantityDescriptionPicture of Optional Acccesory
90701 pcSmart connector for reference PRT for use with Additel temeprature products
90711 pcConnector adapter from Additel smart connector to 4-wire with gold plated spades

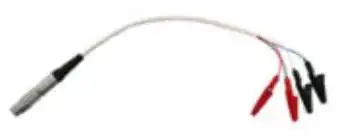

90721 pcConnector adapter from Additel smart connector to 4-wire with clamps
