Additel 760A series
Automatic Handheld Pressure Calibrator
- Automated pressure generation and control to 375 psi (25 Bar)
Full HART field communicator ( -DL models only)

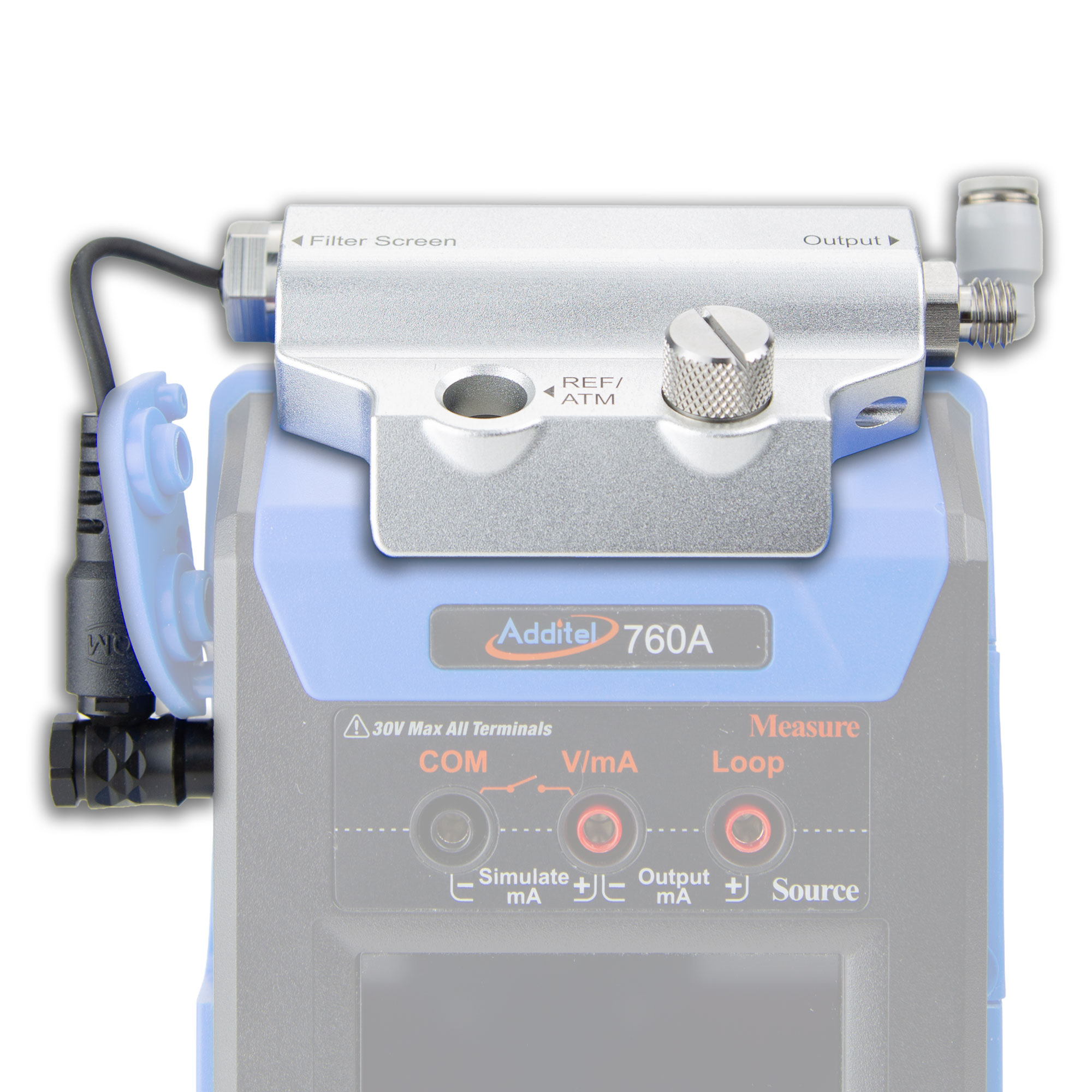

New contamination prevention system (CPS)
Large Smartphone Like Touchscreen User Experience
Non-PC version (ADT760S)
Fully automatic calibrator with built-in pump and controller
Switchable internal pressure modules for expandable ranges
Accuracy up to 0.01%FS
External pressure modules available (measure only)
Less than 4 lbs (1.8 kg) for handheld operation
Source pressure, measure pressure and electrical
Bluetooth, Wi-Fi and USB communications
Additel's benchmark handheld pressure calibrator (Additel 760 series), is engineered for an exceptional user experience. Now,we've introduced key upgrades designed to raise that standard even further with our ADT760A series. The ADT760A includes many key upgrades: Extended range to 375 psi (25 bar), provides a full HART field communicator (-DL models), support for our new contamination prevention system, updated into capacitive touch screen and an all new non-PC version (ADT760S).
All these enhancements are designed to help you work smarter, not harder. We believe the upgraded ADT760A will significantly boost your efficiency and give you time back for what matters most.

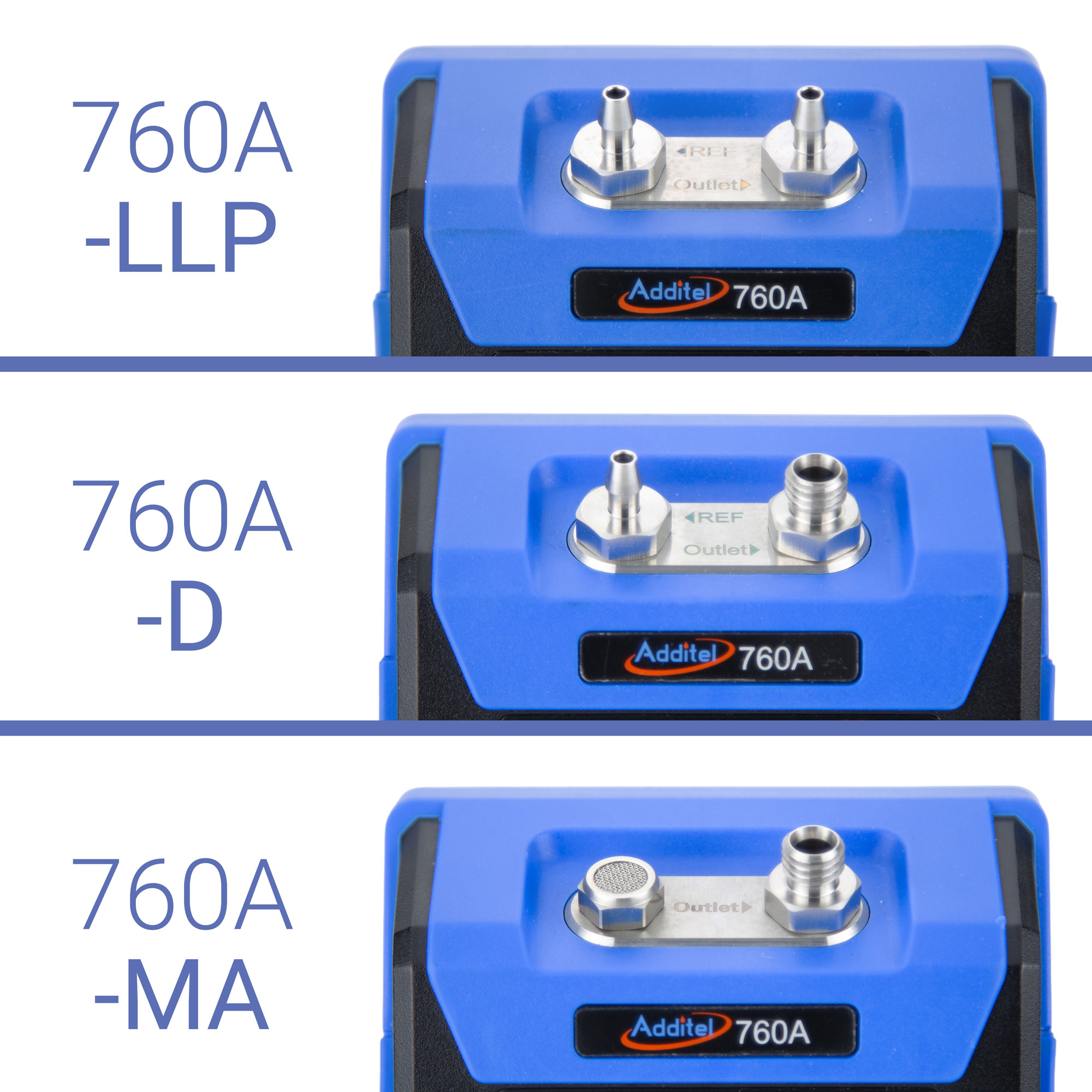

ADT760A/760S-LLP
The 760A/760S-LLP is designed for low pressure calibration and comes with a build-in pressure module of your choice.
The maximum range module compatible with the 760A/760S-LLP is to ±30 inH2O (±75 mbar) and provides an accuracy
to 0.05%FS (see ordering information for configurations with the option of the 760A/760S and a module of your choice).
Additional internal pressure modules (ADT155 series) are available and provide a variety of ranges down to ±0.25
inH2O (±0.62 mbar). The accuracy of 0.05%FS and control stability 0.005%FS is based on the internal module’s span.
Measurements can be made in gauge or differential mode.
ADT760A/760S-D
The760A/760S-D gives you differential and gauge pressure but at a higher pressure range than the 760A/760S-LLP.
Covering the range of -12.5 to 35 psi (-0.86 to 2.5 bar) and with an accuracy of 0.01%FS or 0.02%FS depending on
the interchangeable ADT155 module used, the 760A/760S-D is an ideal solution to cover very
common gauge and differential pressure measurements. The Additel 760A/760S-D comes with
an internal module of your choice. The maximum range module compatible with the 760A/760S-D
is to 35 psi. Lower pressure configurations down to ±10 inH2O differential can be purchased to
improve accuracy at lower pressures.
ADT760A-MA
The 760A/760S-MA generates and controls pressure from vacuum pressures up to 375 psig (25
bar.g) with an accuracy of 0.01%FS or 0.02%FS depending on the interchangeable ADT155
module used. Equipped with a built-in barometric reference, each unit can switch between
gauge and absolute pressure types. A variety of internal sensors are available which offer lower pressure ranges for improved performance.
