Additel 103
Pressure Hoses, Adapters and Fittings

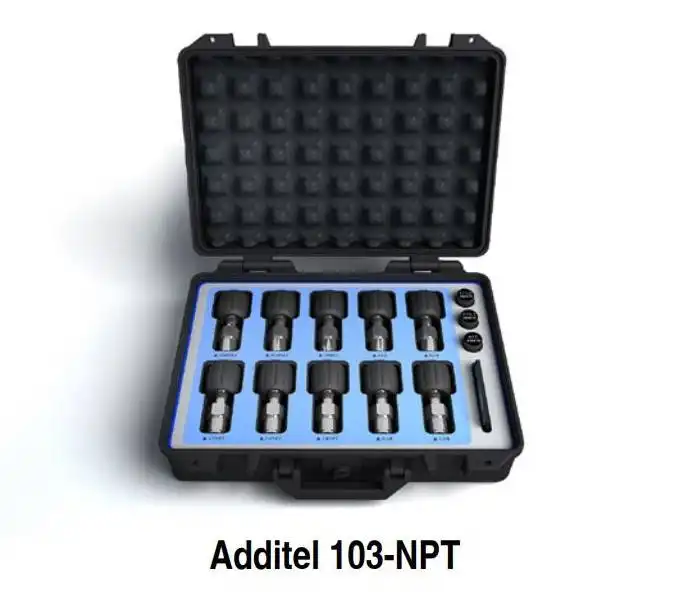

- ADT103-NPT - 1/4" NPT male to various female hand-tight quick connectors (10 pc).
- ADT103-BSP - 1/4"BSP male to various female hand-tight quick connectors (10 pc).

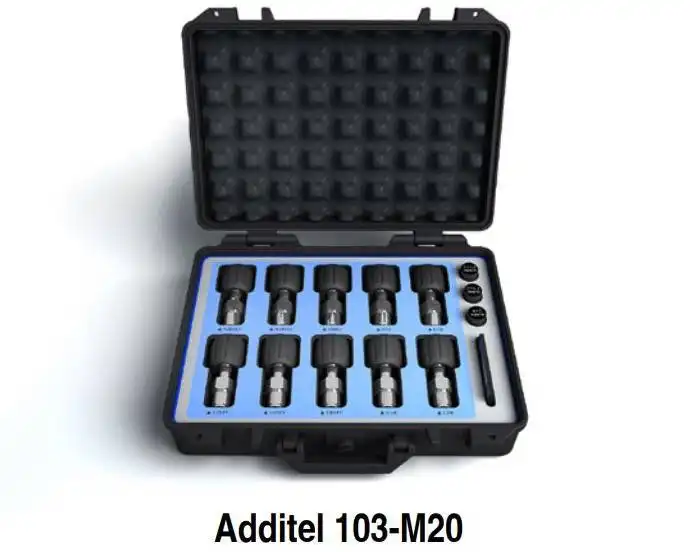

- ADT103-M20 - M20X1.5 male to various female hand-tight quick connectors (10 pc).
- Designed for all pumps except Additel 949 pump
- Can be ordered as an entire kit or as individual parts (see datasheet)
heyy
ADT103
1/4NPT male to various hand-tight quick connectors as follows (10 pcs, case included)
| Carrying Case for Adapters | Model | Description | Max Pressure | Picture of Adapter |
|---|---|---|---|---|

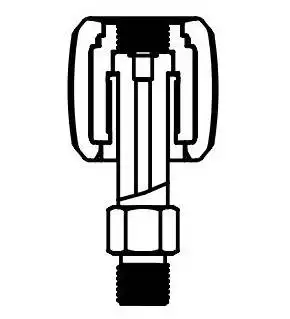

 | ADT100-NPTM4-NPTF8Q | Adapters, 1/4NPT male to 1/8NPT female | 15,000 psi |  |
| ADT100-NPTM4-NPTF4Q | Adapters, 1/4NPT male to 1/4NPT female | 15,000 psi | ||
| ADT100-NPTM4-NPTF2Q | Adapters, 1/4NPT male to 1/2NPT female | 15,000 psi | ||
| ADT100-NPTM4-BSPF8Q | Adapters, 1/4NPT male to 1/8BSP female | 15,000 psi | ||
| ADT100-NPTM4-BSPF4Q | Adapters, 1/4NPT male to 1/4BSP female | 15,000 psi | ||
| ADT100-NPTM4-BSPF3Q | Adapters, 1/4NPT male to 3/8BSP female | 15,000 psi | ||
| ADT100-NPTM4-BSPF2Q | Adapters, 1/4NPT male to 1/2BSP female | 15,000 psi | ||
| ADT100-NPTM4-M10FQ | Adapters, 1/4NPT male to M10×1.0 female | 15,000 psi | ||
| ADT100-NPTM4-M14FQ | Adapters, 1/4NPT male to M14×1.5 female | 15,000 psi | ||
| ADT100-NPTM4-M20FQ | Adapters, 1/4NPT male to M20x1.5 female | 15,000 psi | ||

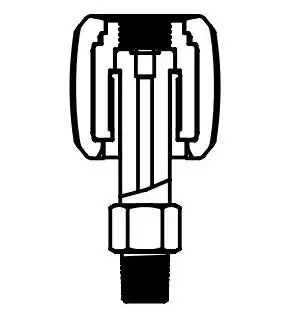

 | ADT100-BSPM4-NPTF8Q | Adapter, 1/4BSP male to 1/8NPT female | 15,000 psi |  |
| ADT100-BSPM4-NPTF4Q | Adapter, 1/4BSP male to 1/4NPT female | 15,000 psi | ||
| ADT100-BSPM4-NPTF2Q | Adapter, 1/4BSP male to 1/2NPT female | 15,000 psi | ||
| ADT100-BSPM4-BSPF8Q | Adapters, 1/4BSP male to 1/8BSP female | 15,000 psi | ||
| ADT100-BSPM4-BSPF4Q | Adapters, 1/4BSP male to 1/4BSP female | 15,000 psi | ||
| ADT100-BSPM4-BSPF3Q | Adapters, 1/4BSP male to 3/8BSP female | 15,000 psi | ||
| ADT100-BSPM4-BSPF2Q | Adapters, 1/4BSP male to 1/2BSP female | 15,000 psi | ||
| ADT100-BSPM4-M10FQ | Adapters, 1/4BSP male to M10×1.0 female | 15,000 psi | ||
| ADT100-BSPM4-M14FQ | Adapters, 1/4BSP male to M14×1.5 female | 15,000 psi | ||
| ADT100-BSPM4-M20FQ | Adapters, 1/4BSP male to M20x1.5 female | 15,000 psi | ||

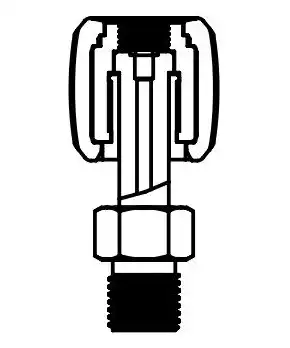

 | ADT100-M20M-NPTF8Q | Adapters, M20×1.5 Male to 1/8NPT female | 15,000 psi |  |
| ADT100-M20M-NPTF4Q | Adapters, M20×1.5 Male to 1/4NPT female | 15,000 psi | ||
| ADT100-M20M-NPTF2Q | Adapters, M20×1.5 Male to 1/2NPT female | 15,000 psi | ||
| ADT100-M20M-BSPF8Q | Adapters, M20×1.5 Male to 1/8BSP female | 15,000 psi | ||
| ADT100-M20M-BSPF4Q | Adapters, M20×1.5 Male to 1/4BSP female | 15,000 psi | ||
| ADT100-M20M-BSPF3Q | Adapters, M20×1.5 Male to 3/8BSP female | 15,000 psi | ||
| ADT100-M20M-BSPF2Q | Adapters, M20×1.5 Male to 1/2BSP female | 15,000 psi | ||
| ADT100-M20M-M10FQ | Adapters, M20×1.5 Male to M10×1.0 female | 15,000 psi | ||
| ADT100-M20M-M14FQ | Adapters, M20×1.5 Male to M14×1.5 female | 15,000 psi | ||
| ADT100-M20M-M20FQ | Adapters, M20×1.5 Male to M20×1.5 female | 15,000 psi |
Don't need the entire kit? Order individual adapters with the above part numbers
